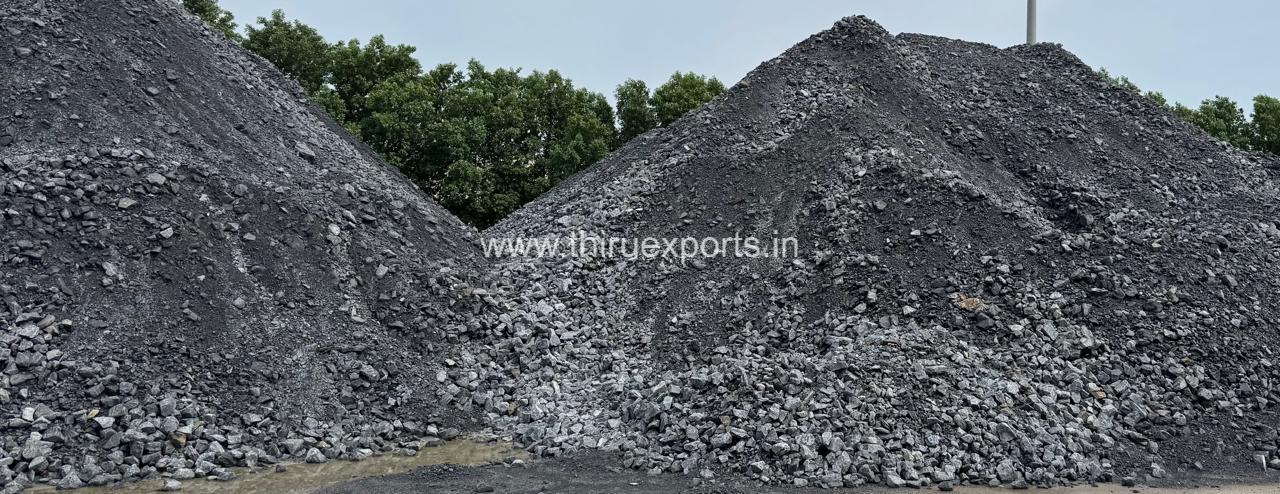

Barite Mines Stock Yard
Barite Mines Stock Yard

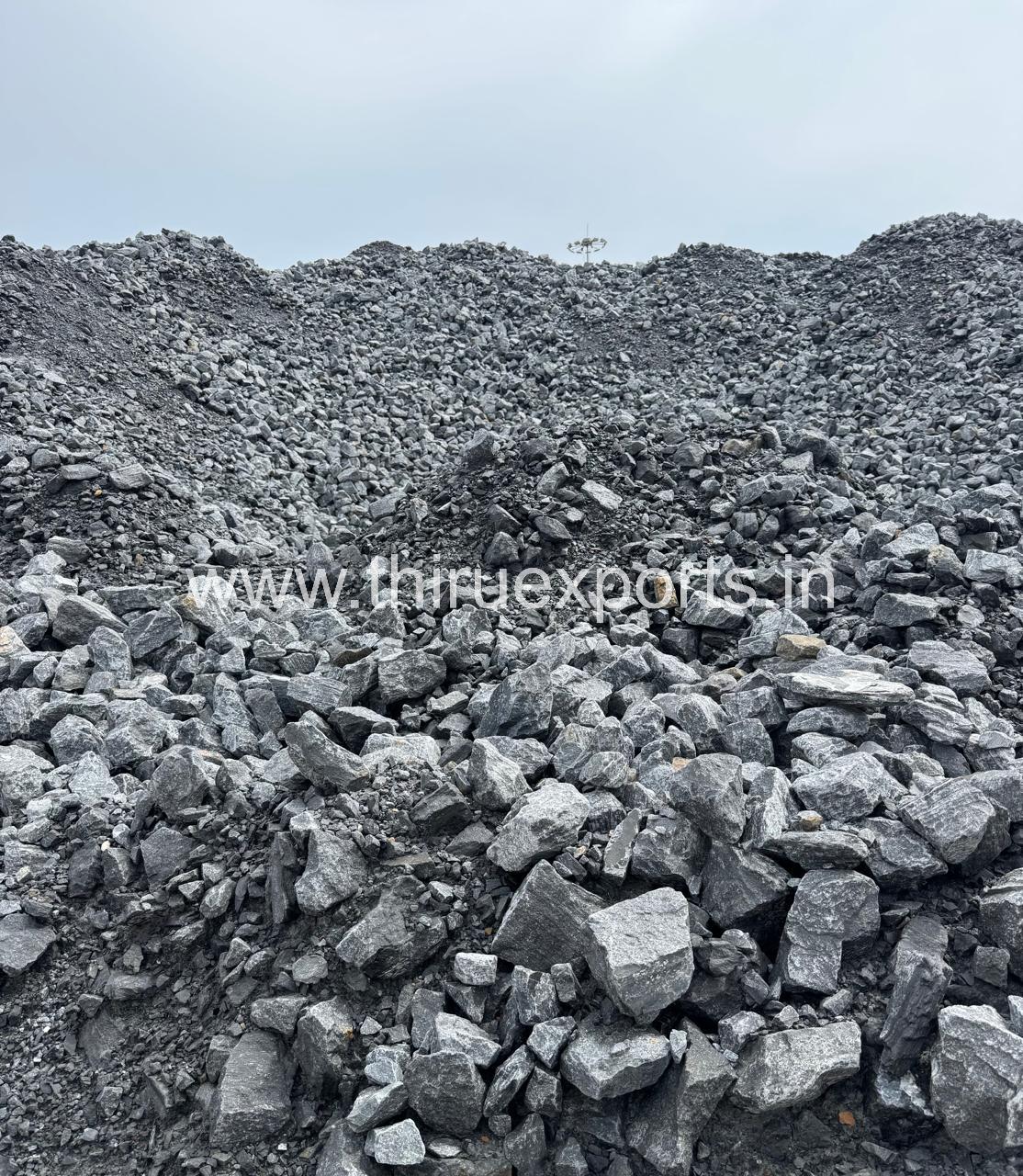

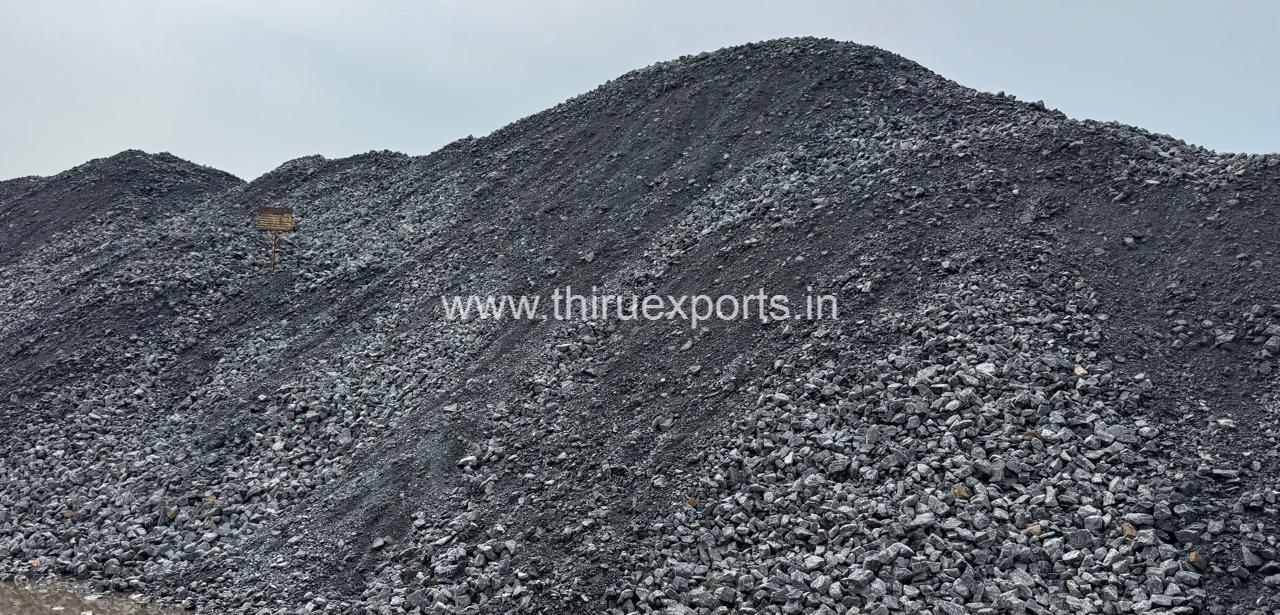

Barite Stock Yard

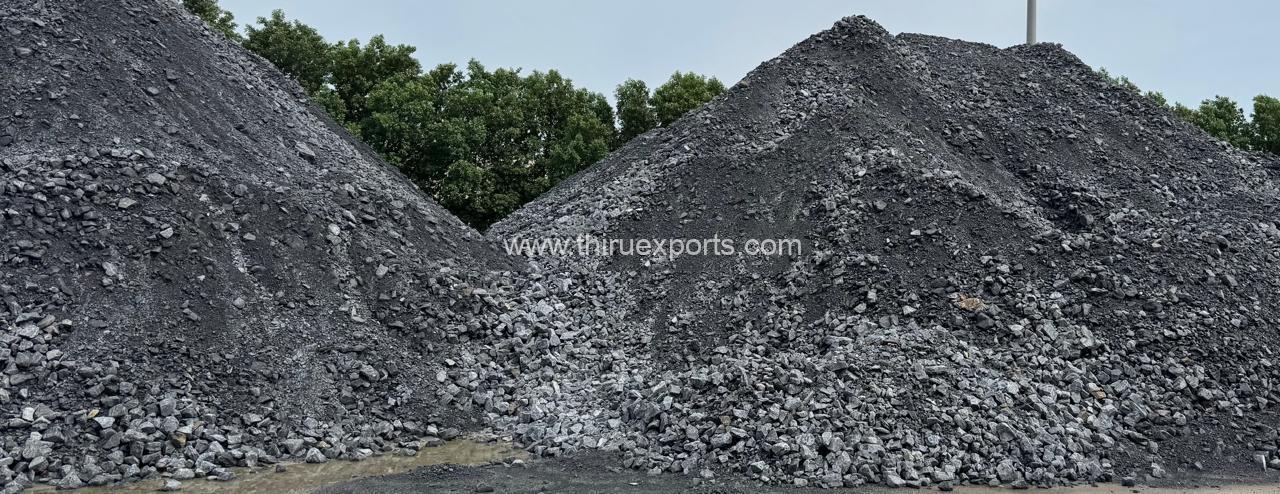

Shipping stock yard No 1

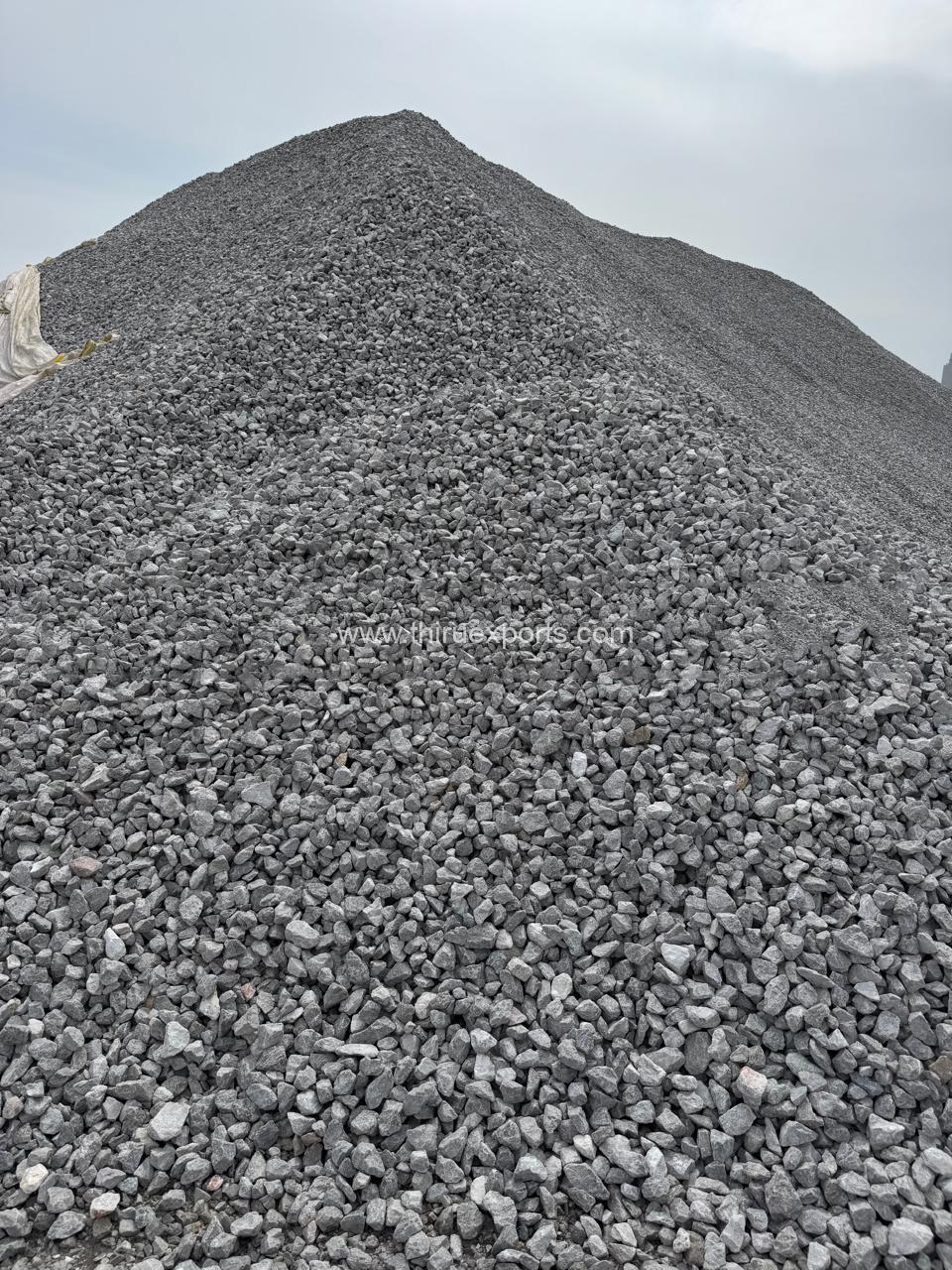

Binding Stock Yard

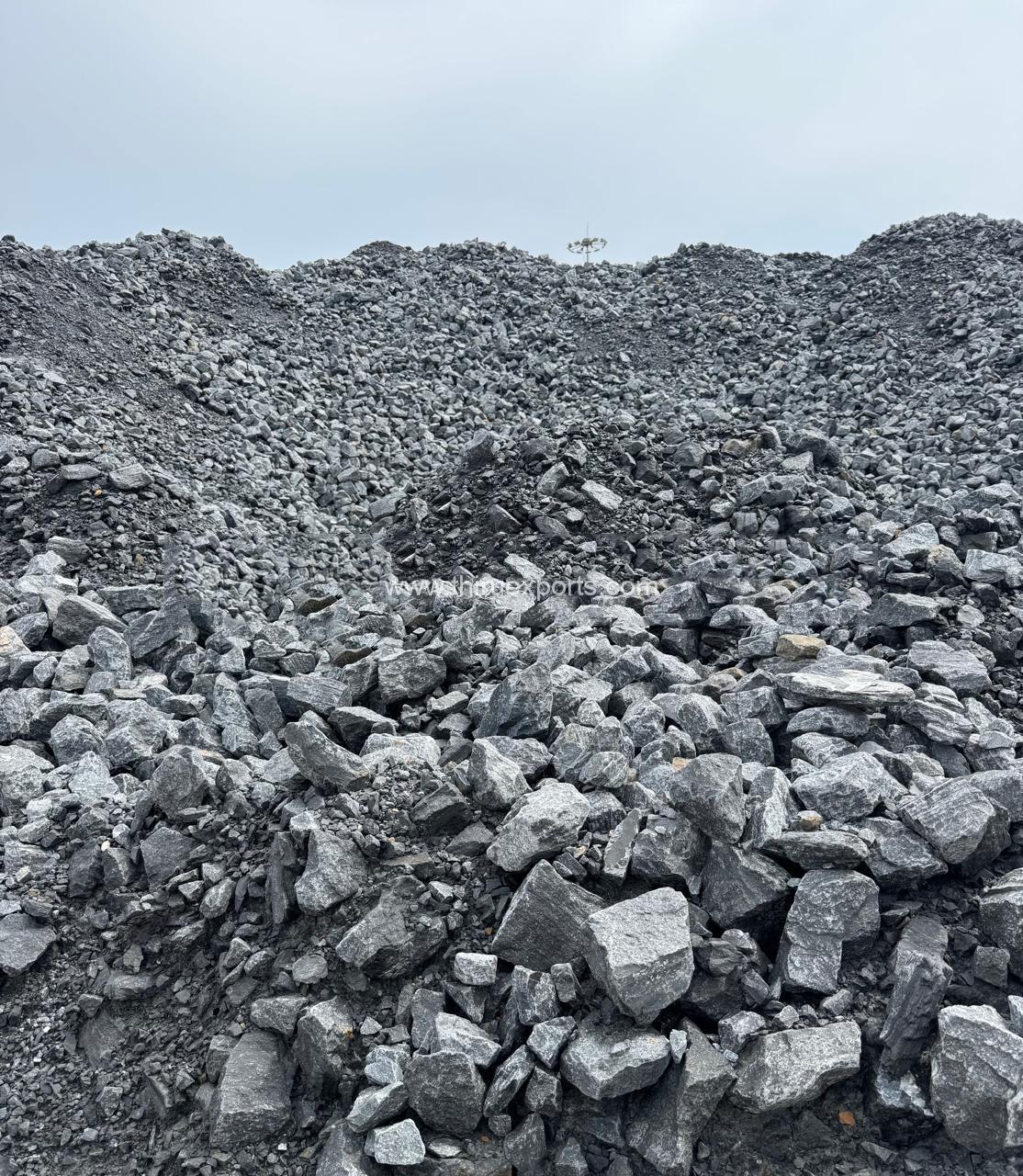

Shipping stock yard No - 2
BARITE

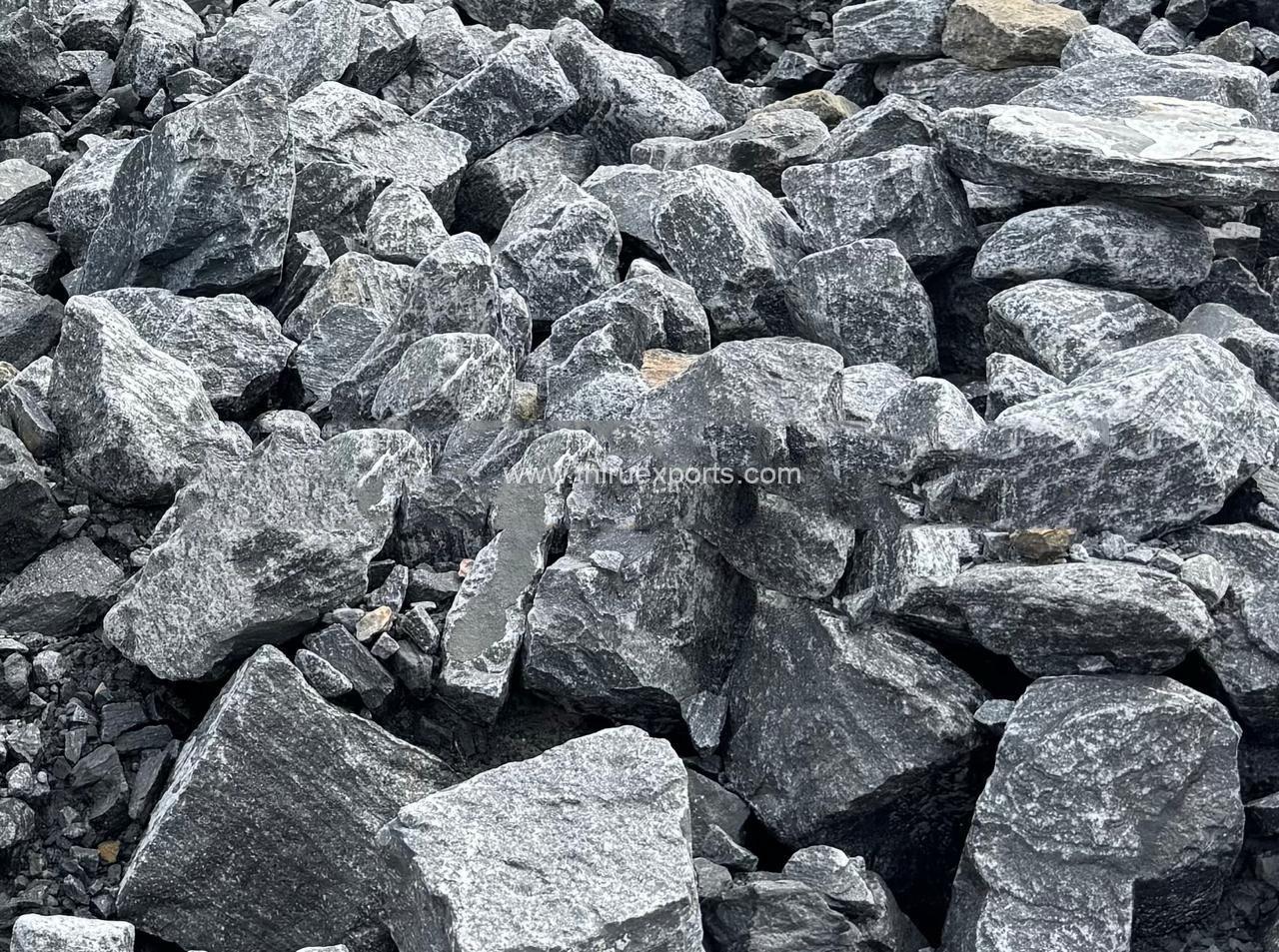

A Grade 4.20 SG

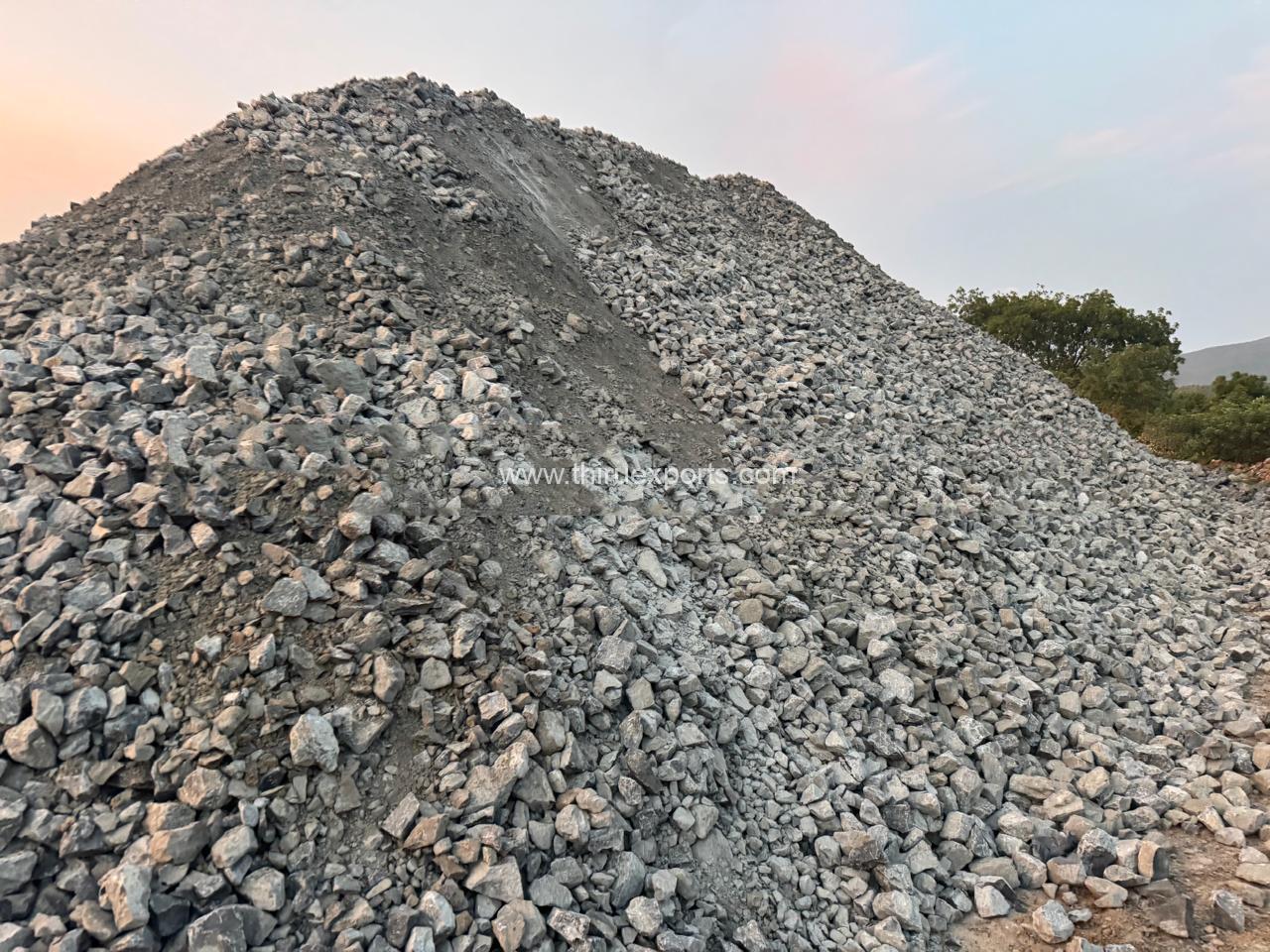

B Grade 4.10 SG
C & D Grade 3.89

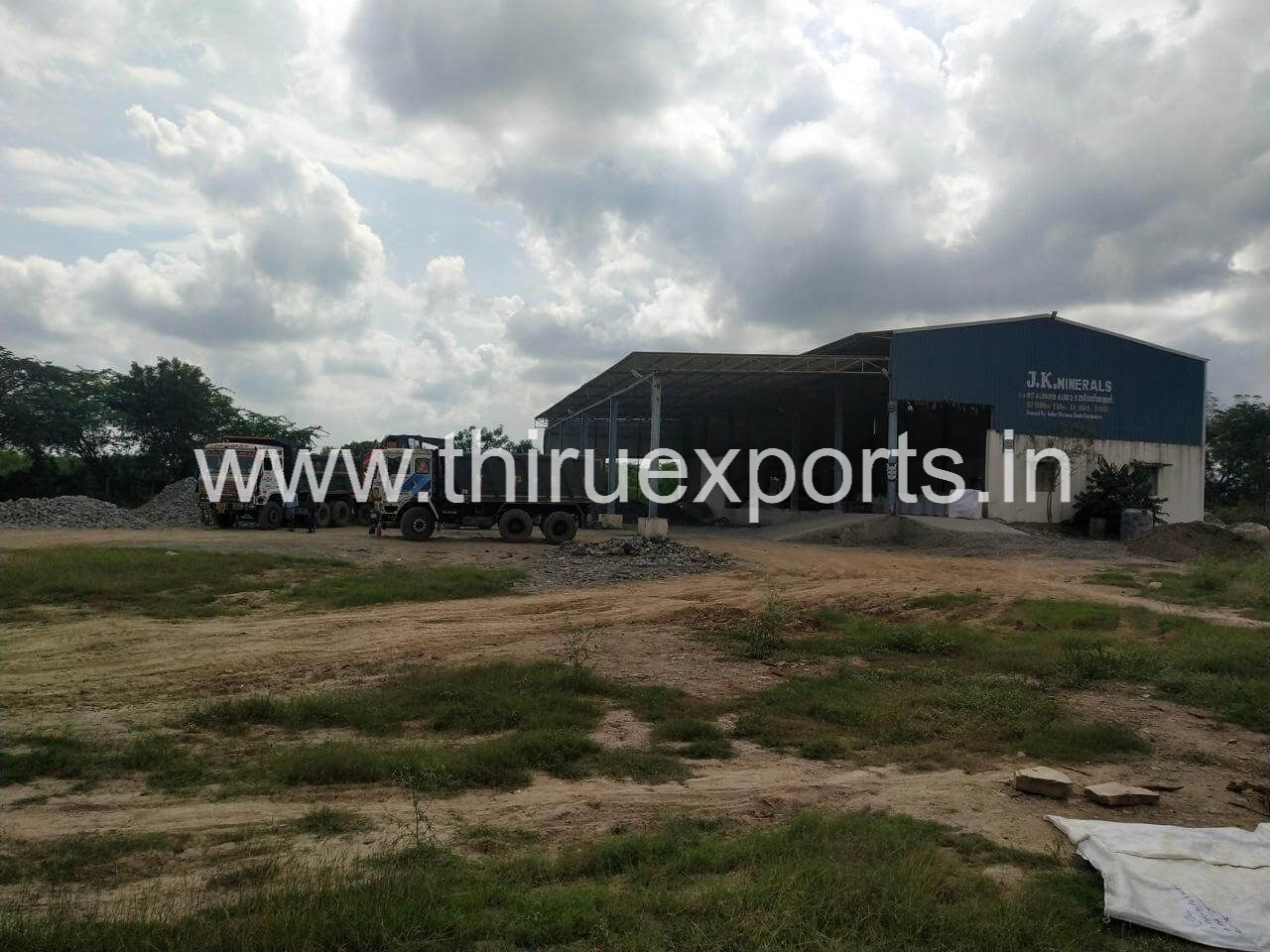

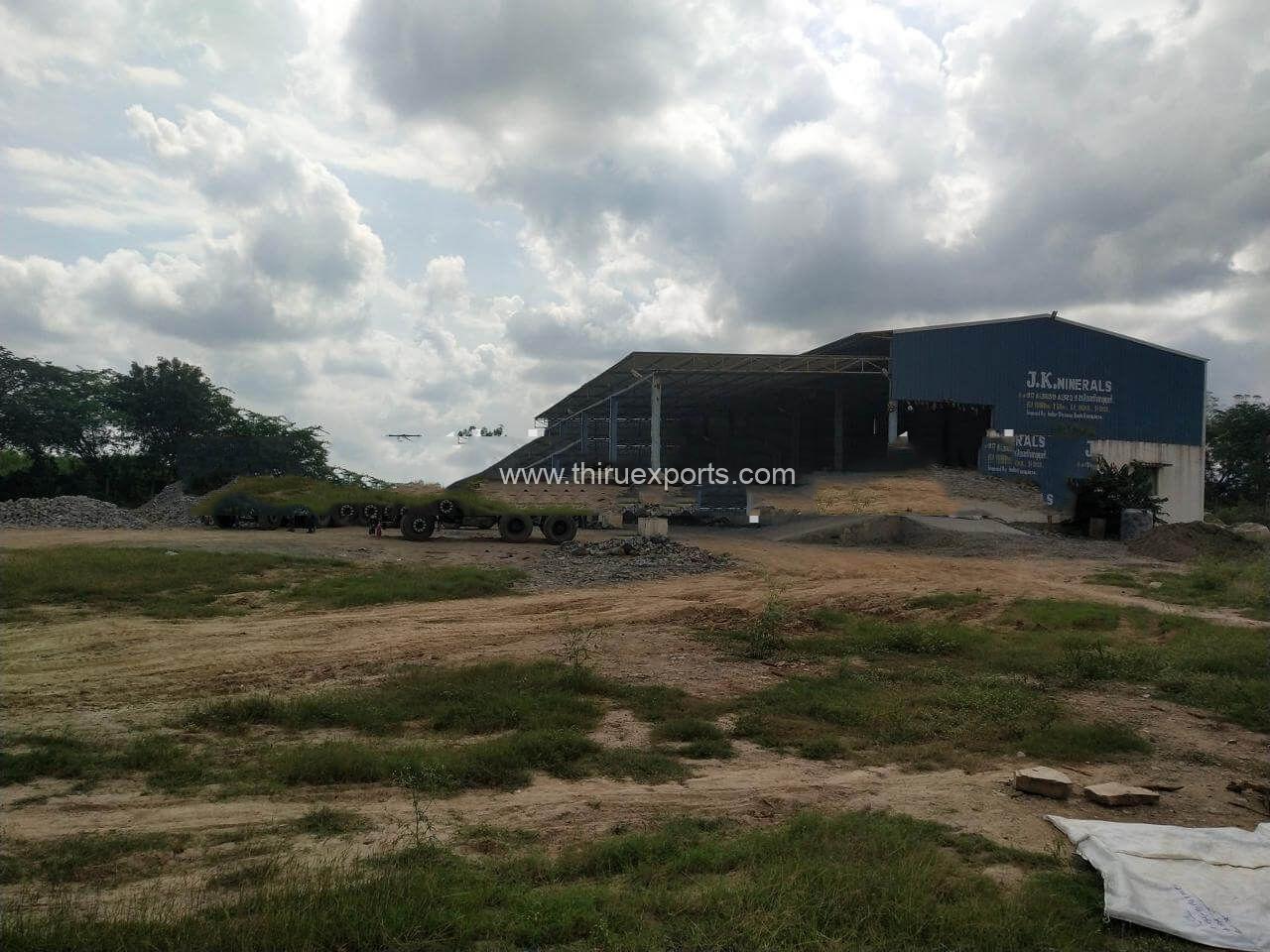

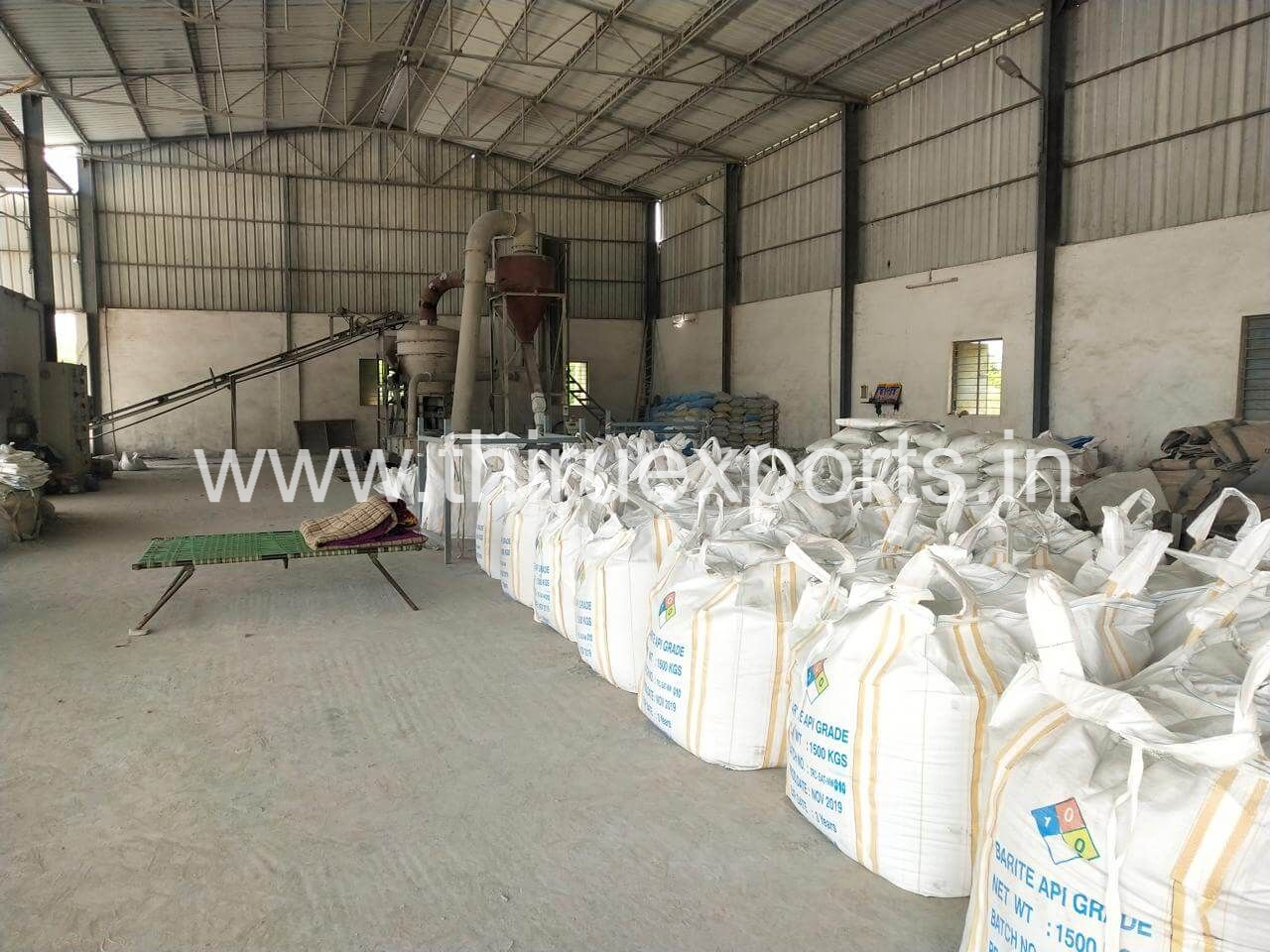

Barite Factory

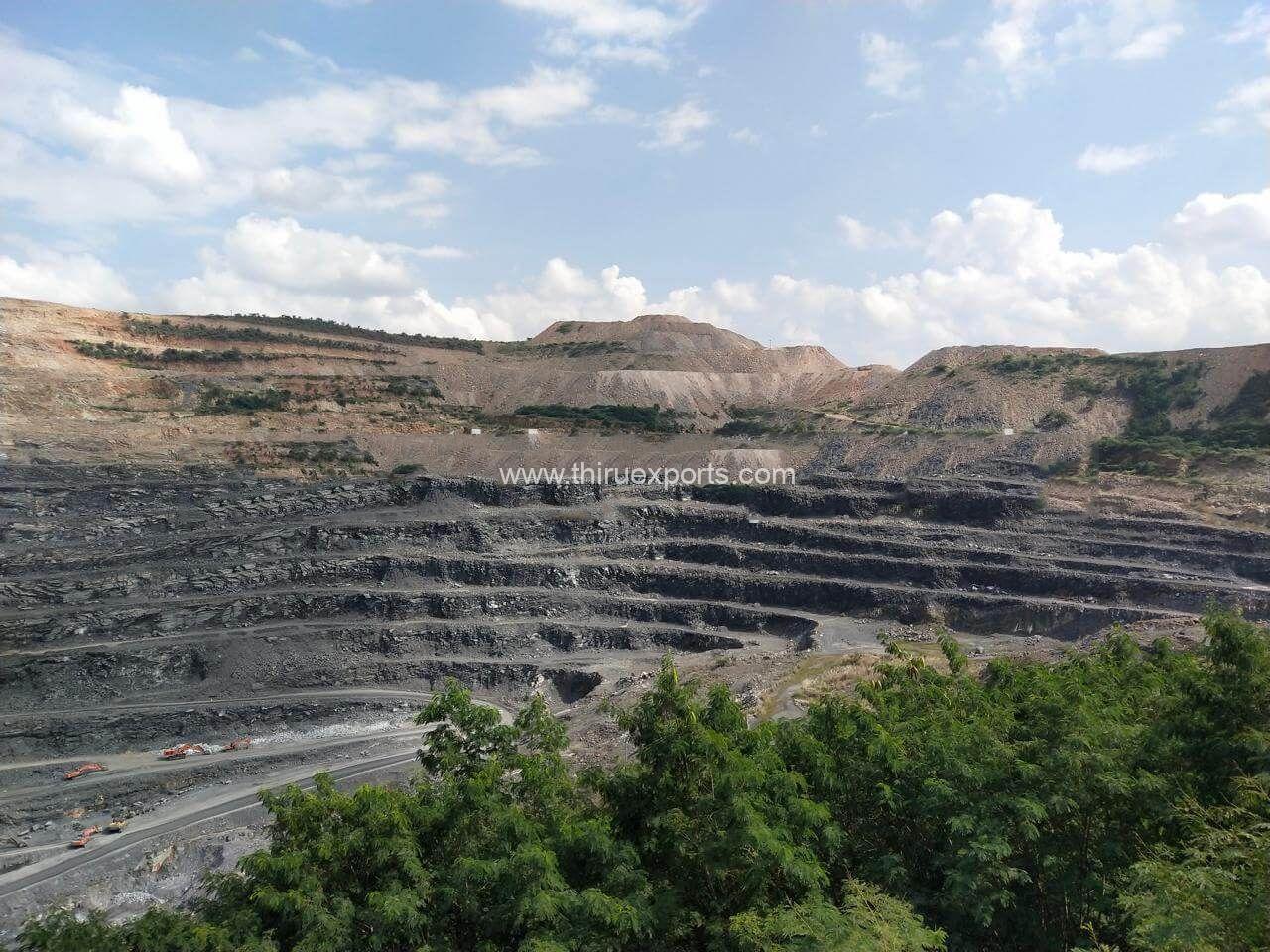

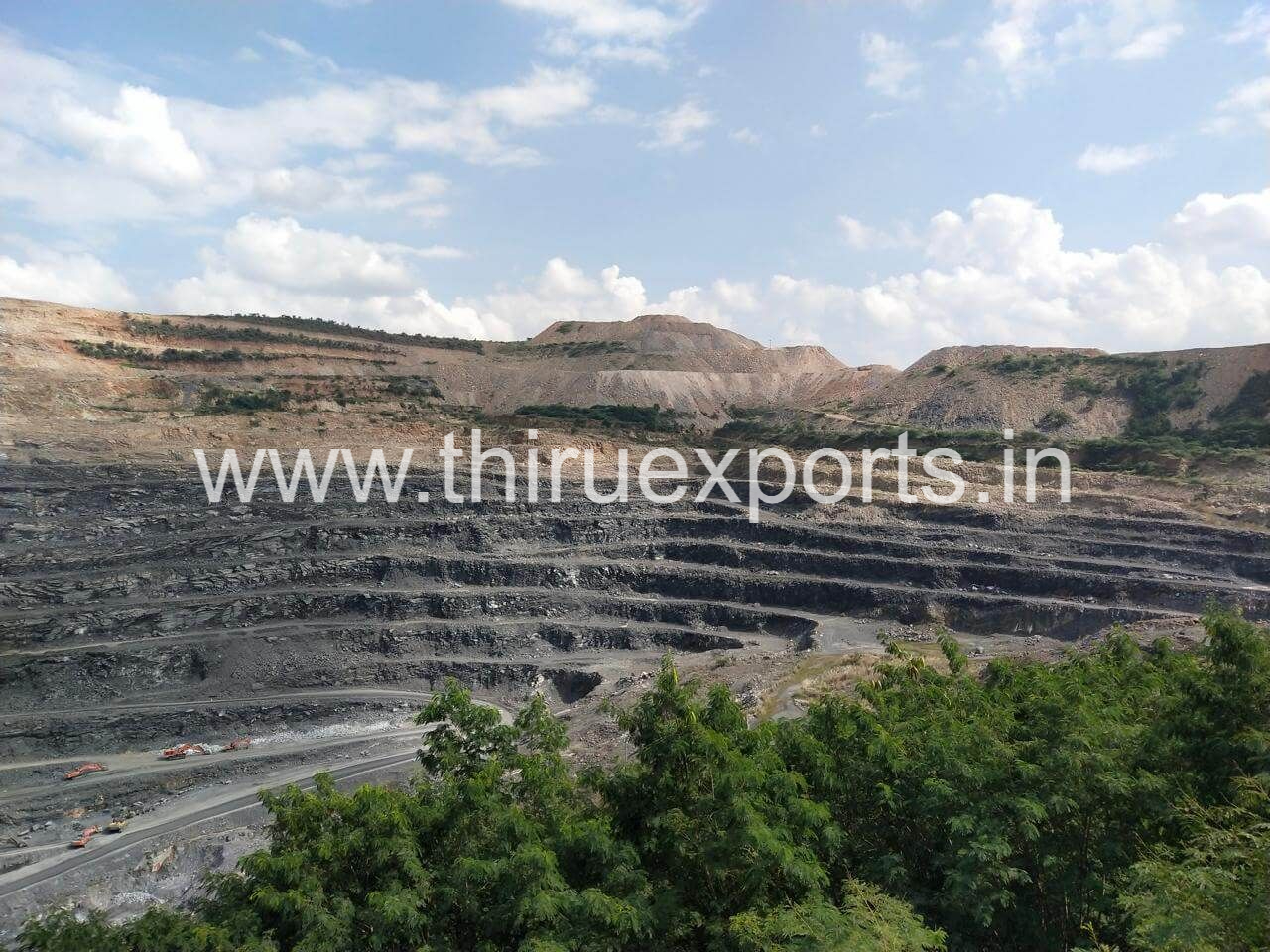

Barite Mines

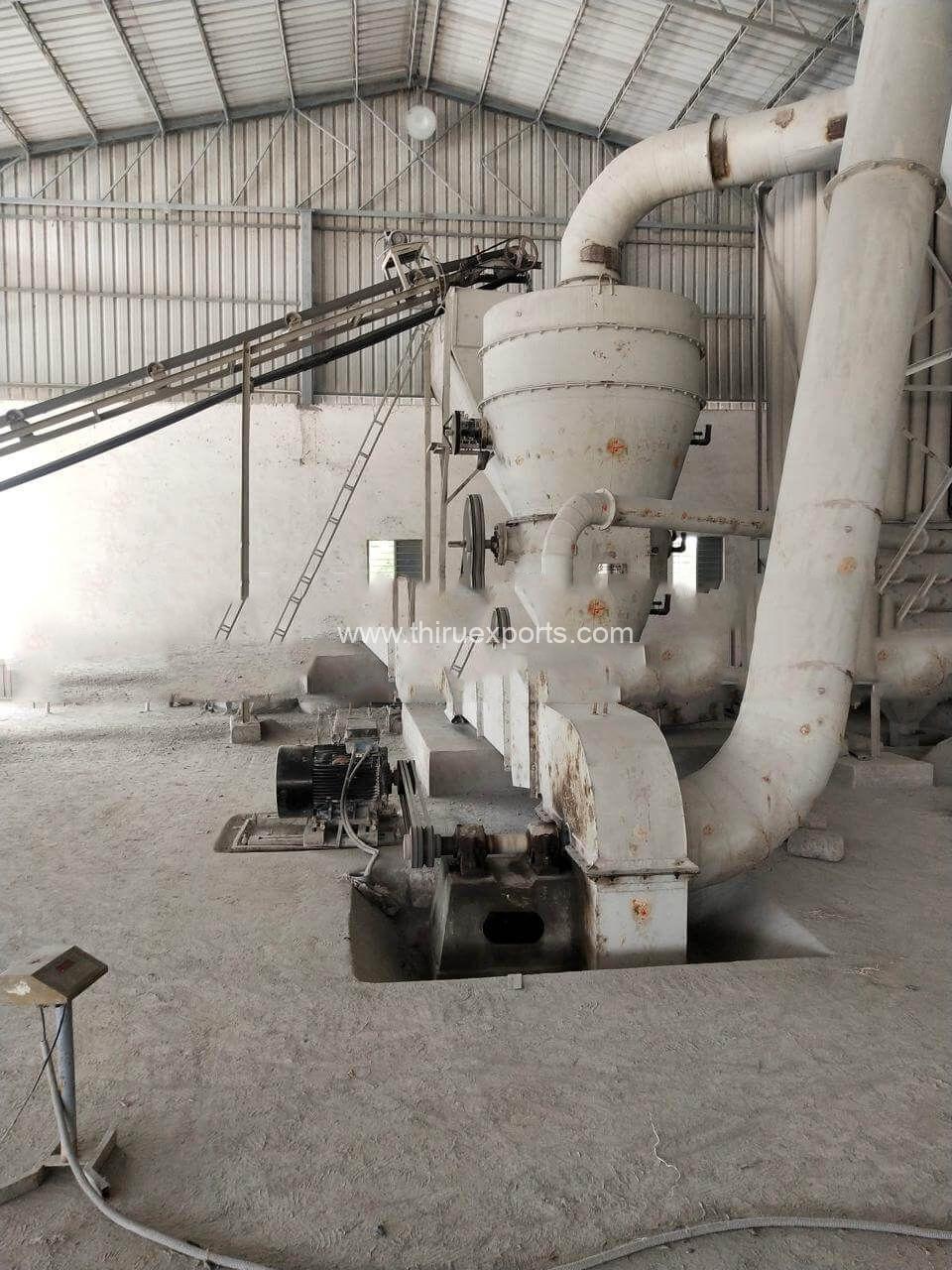

Conveyor Belt Systems

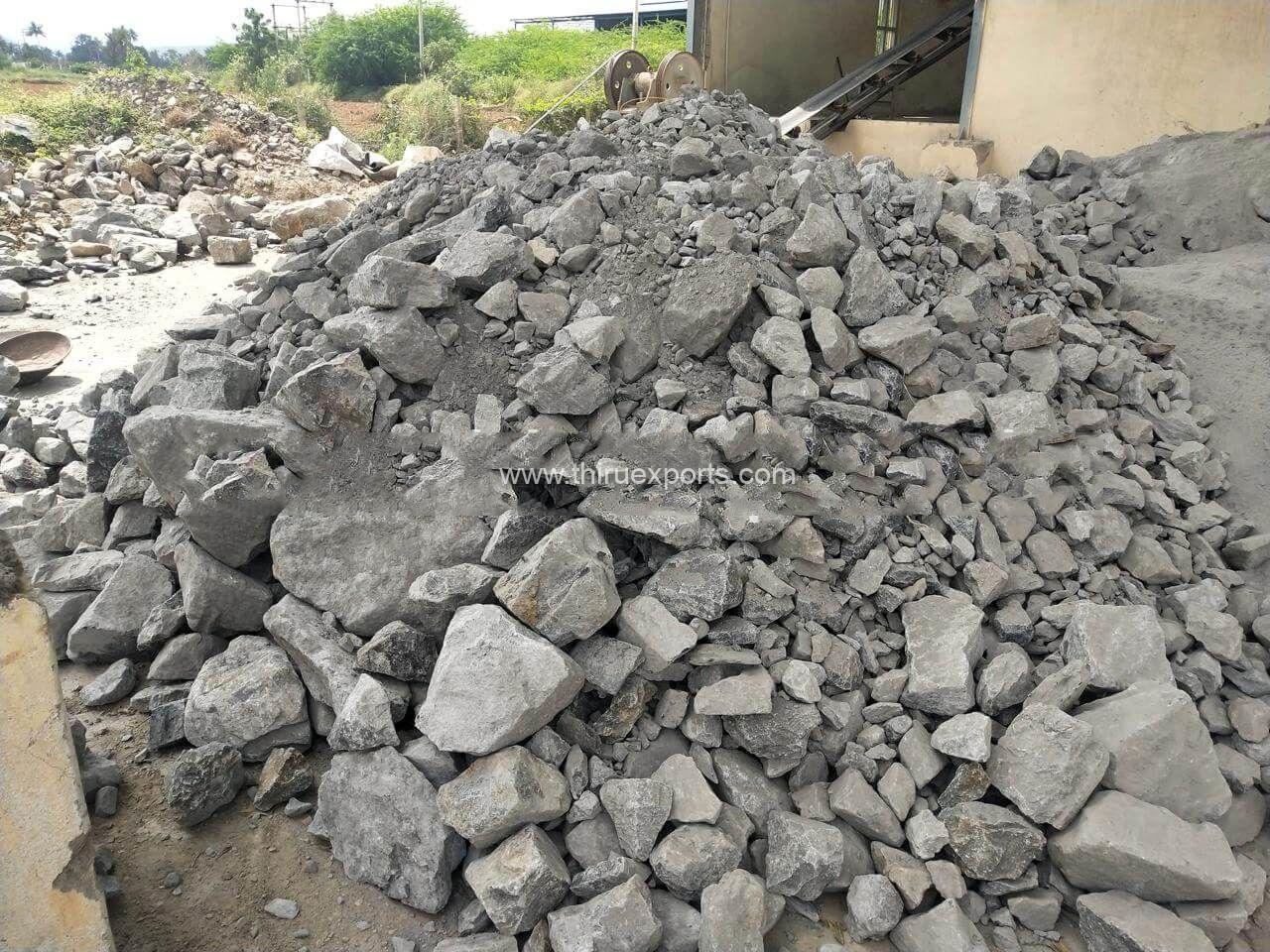

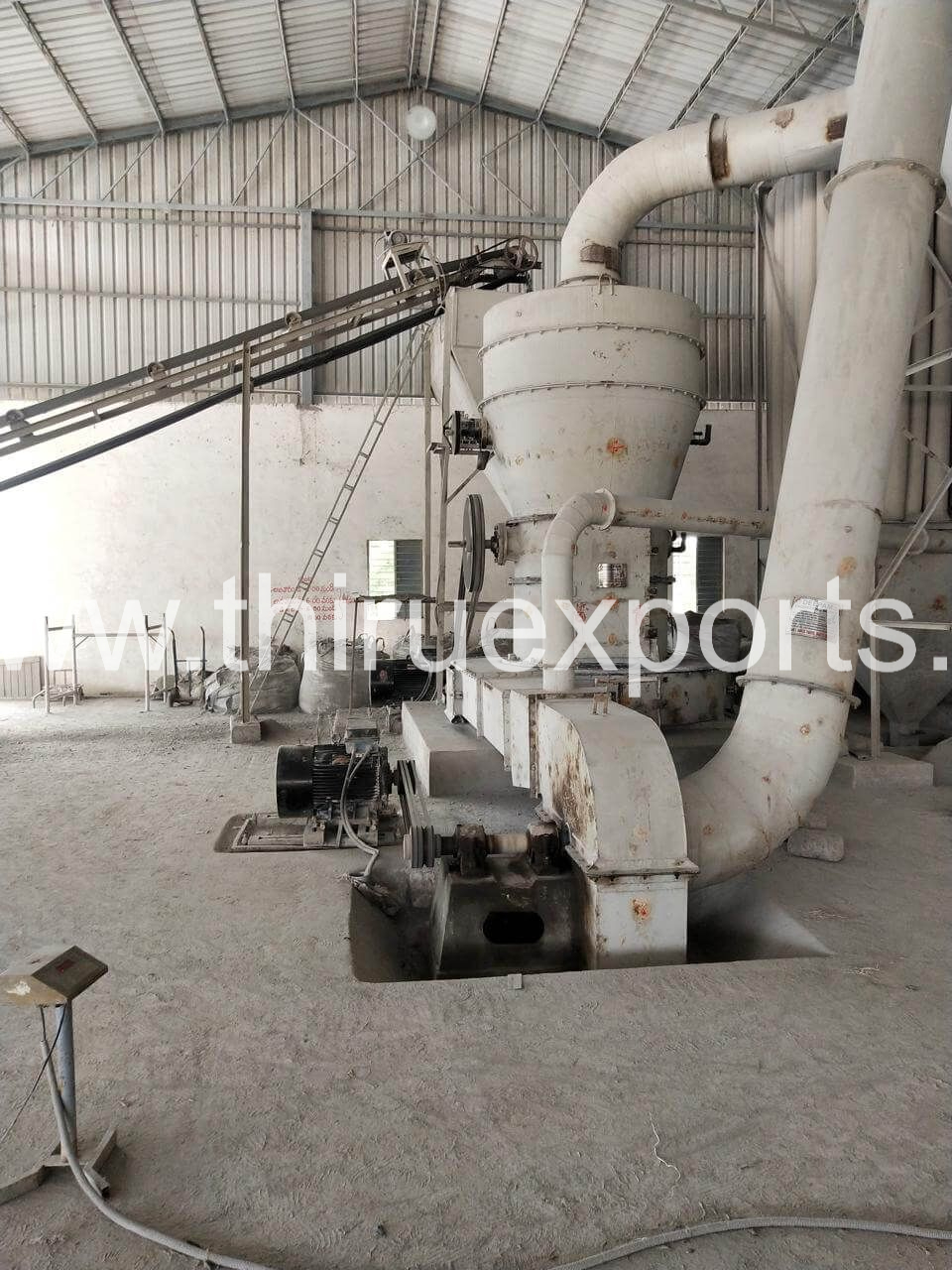

Barite Stock Processing

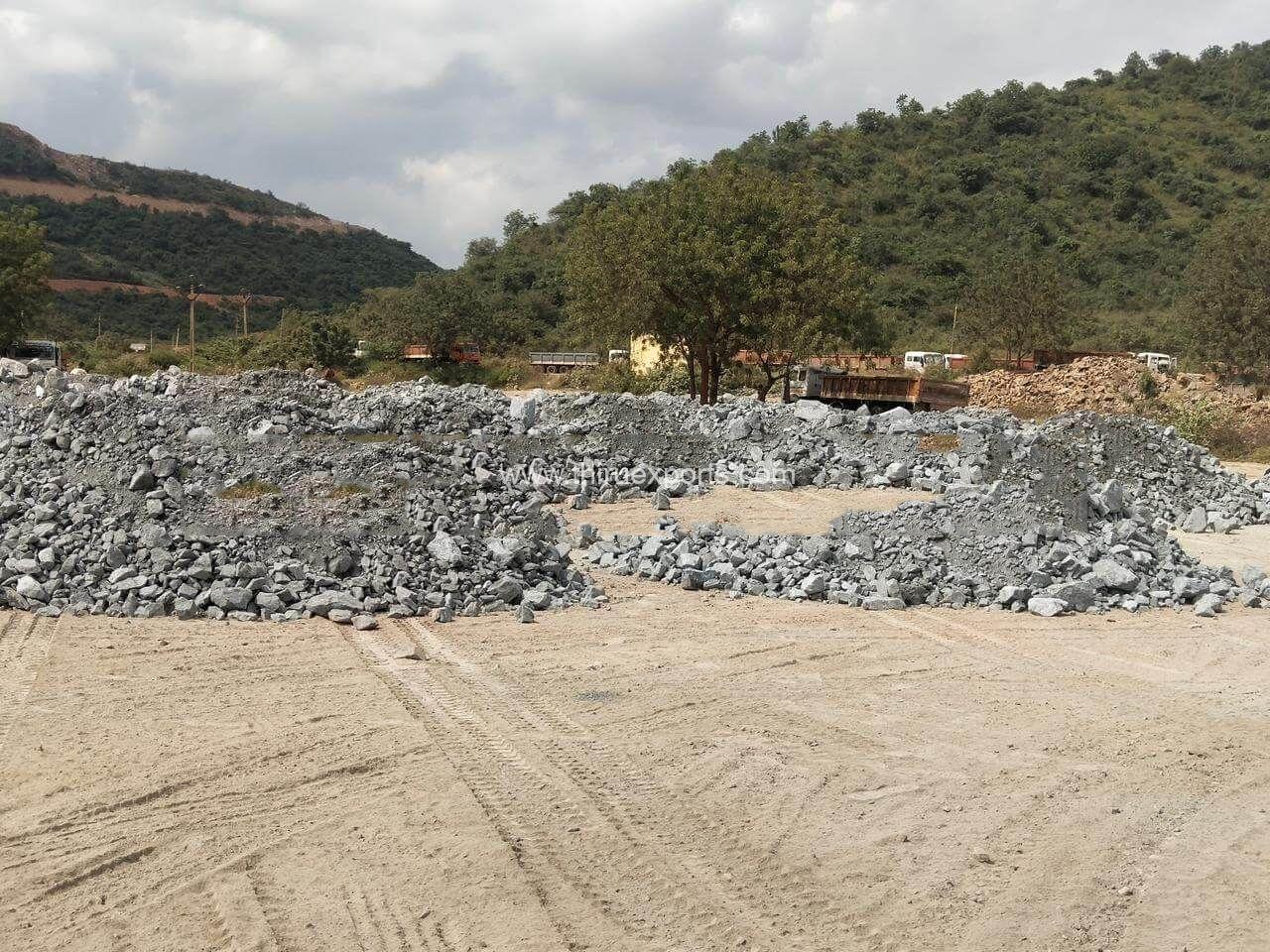

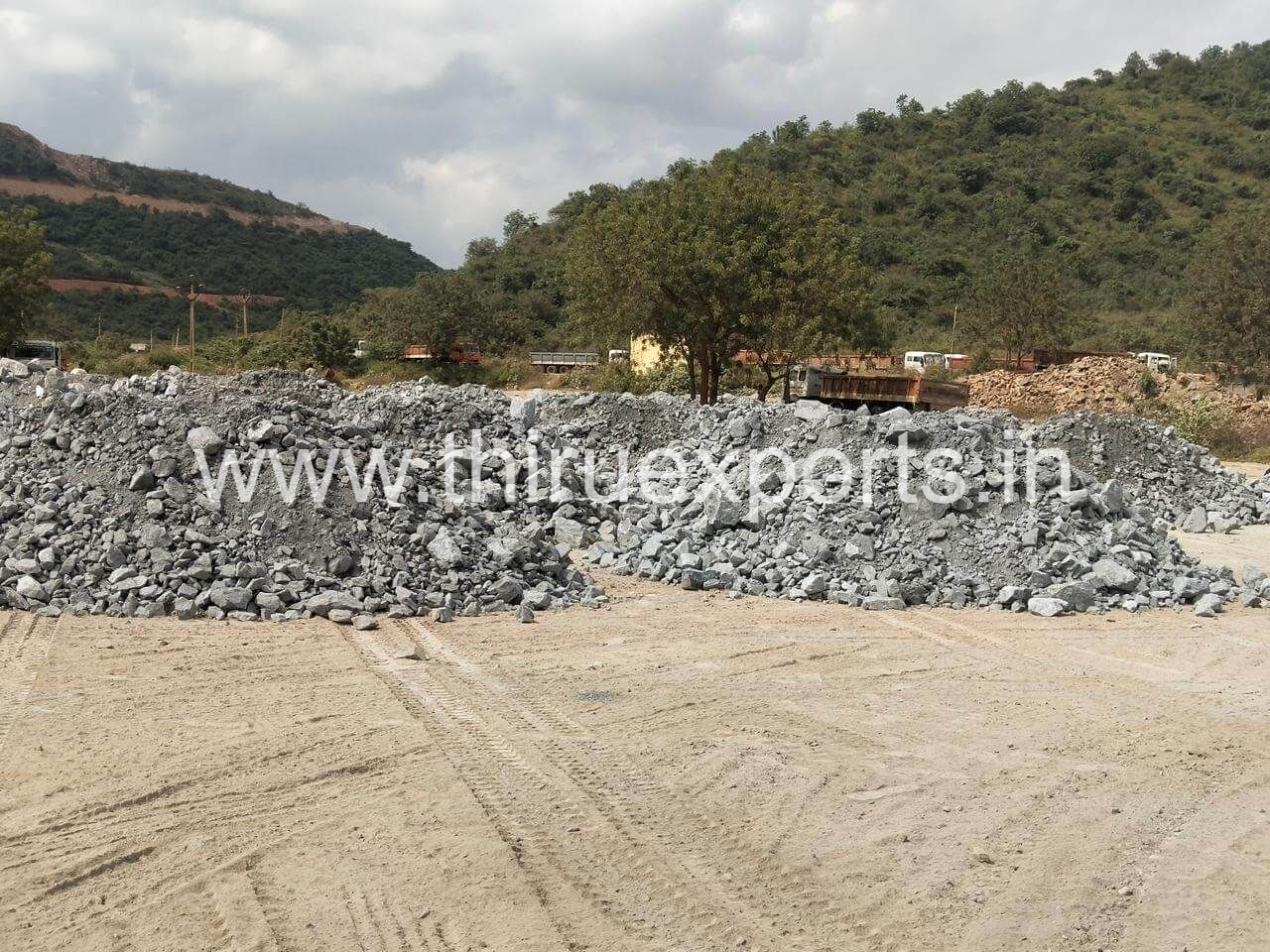

Barite Stock yard

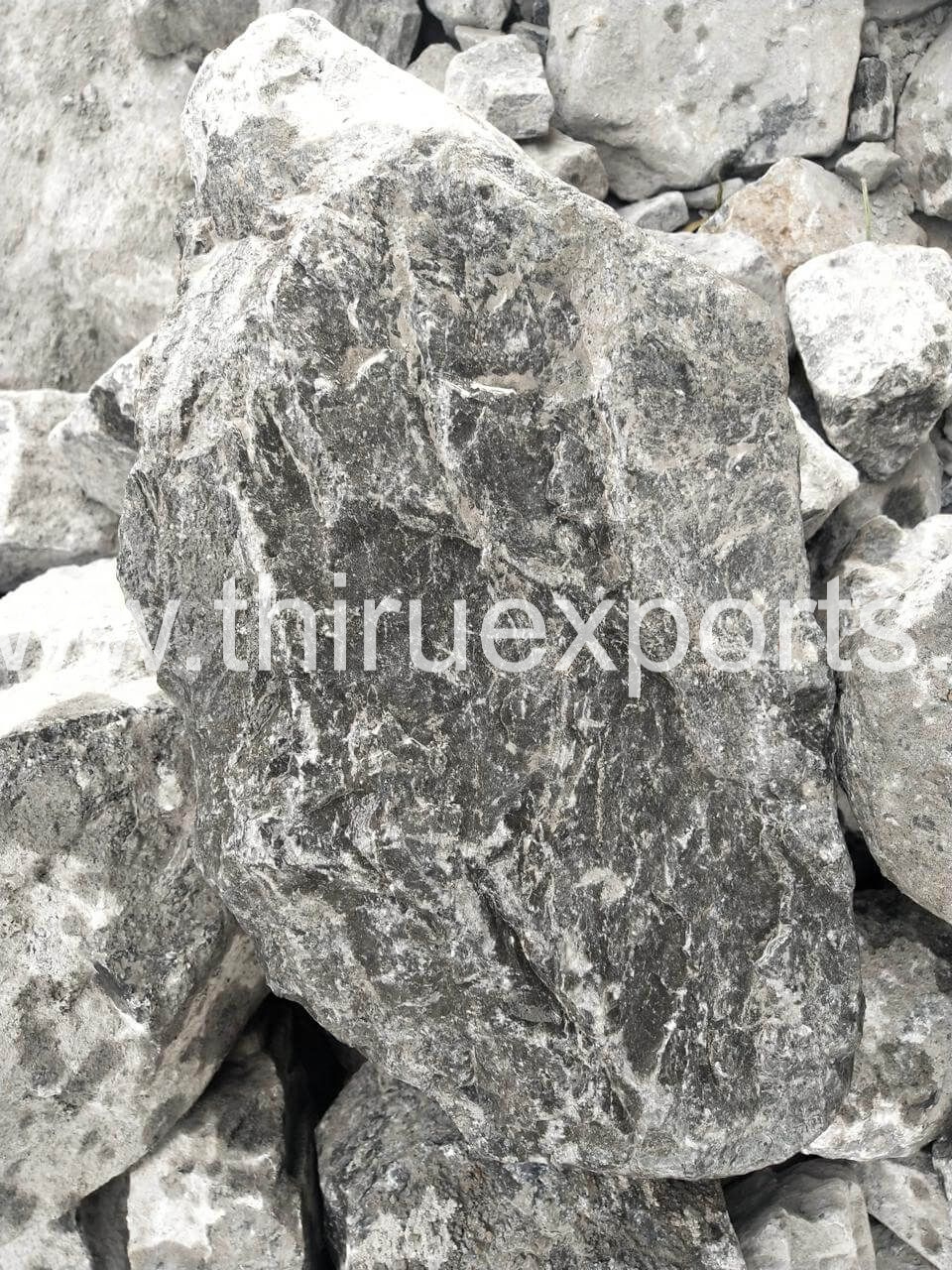

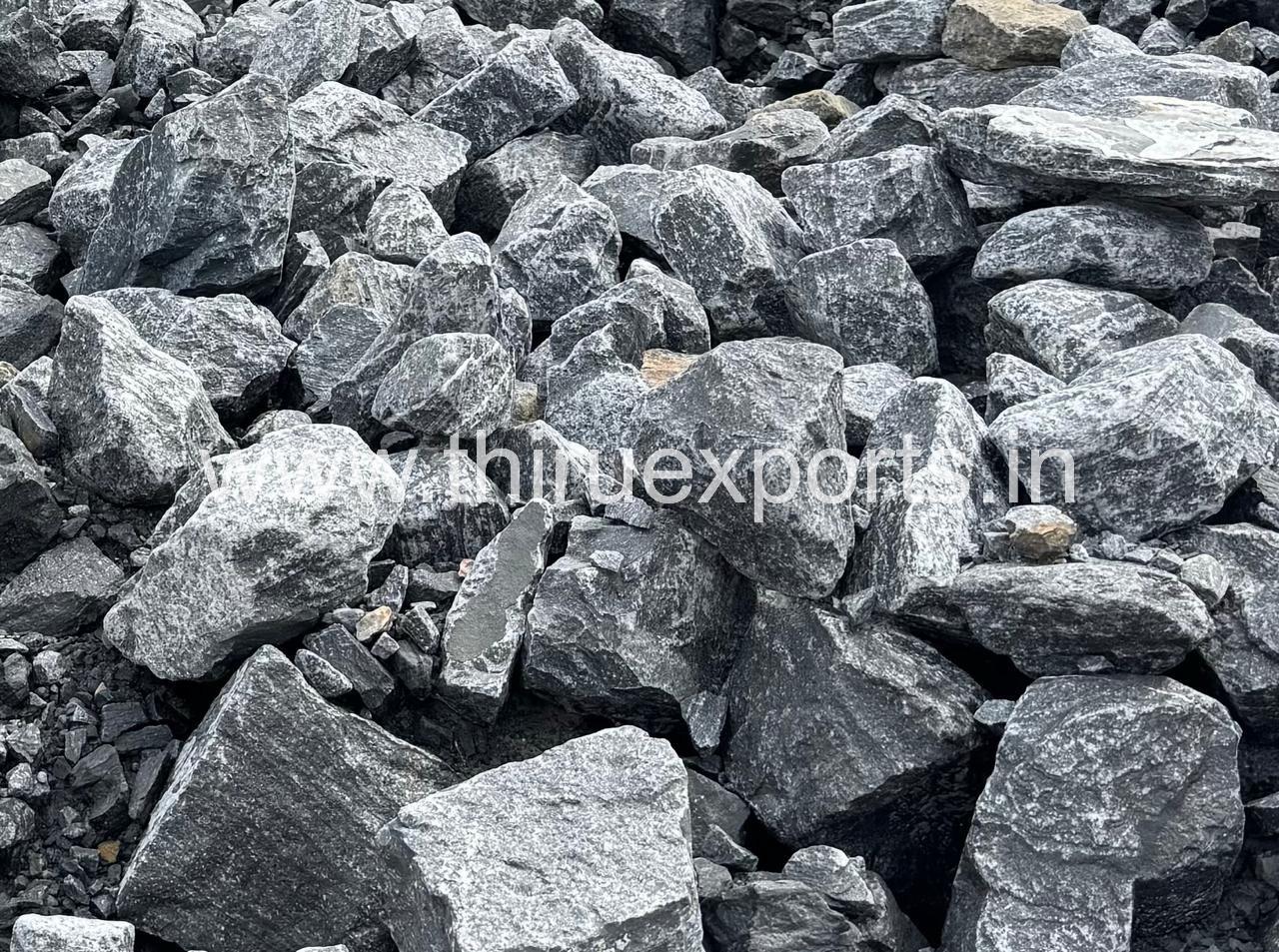

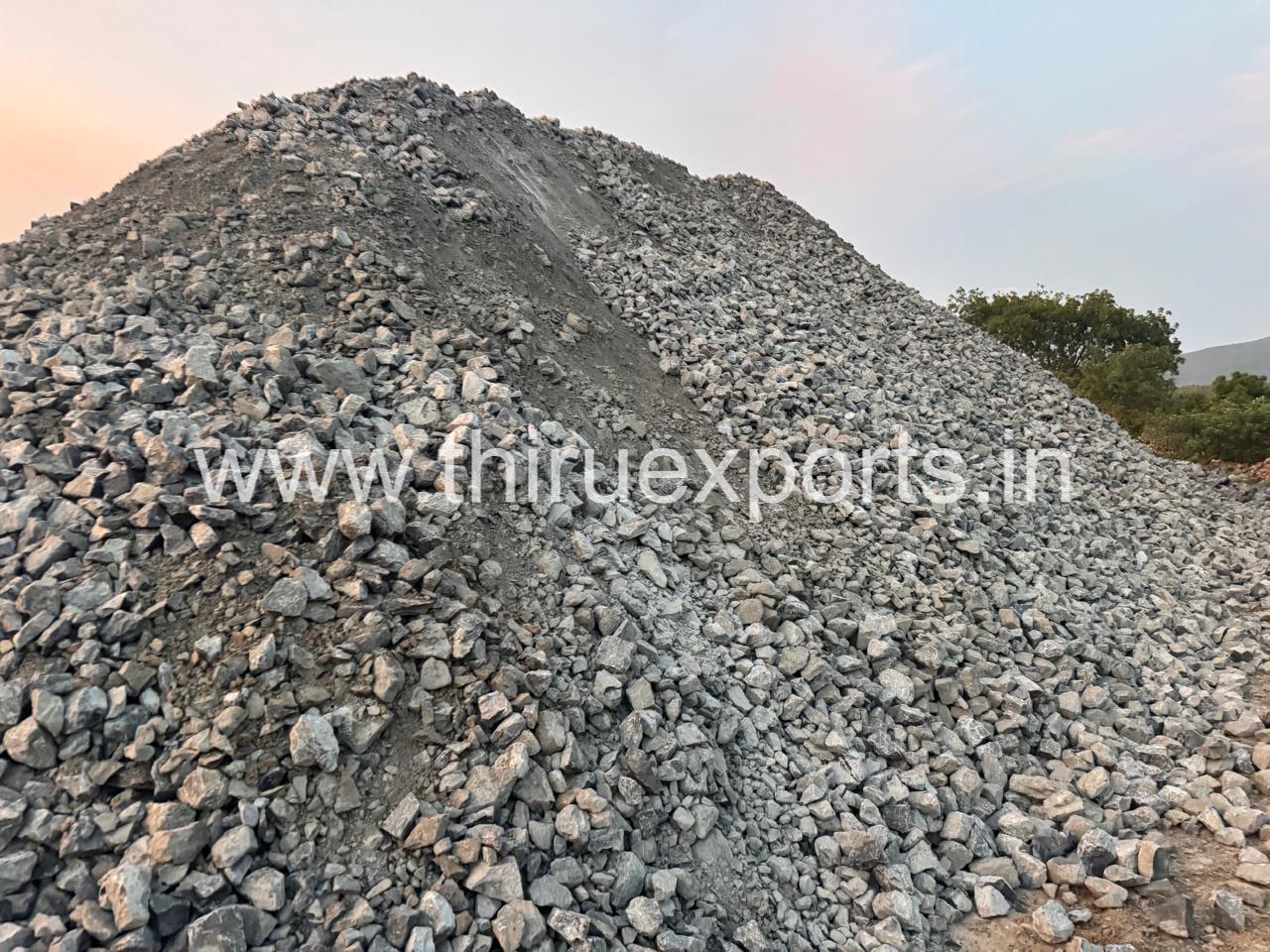

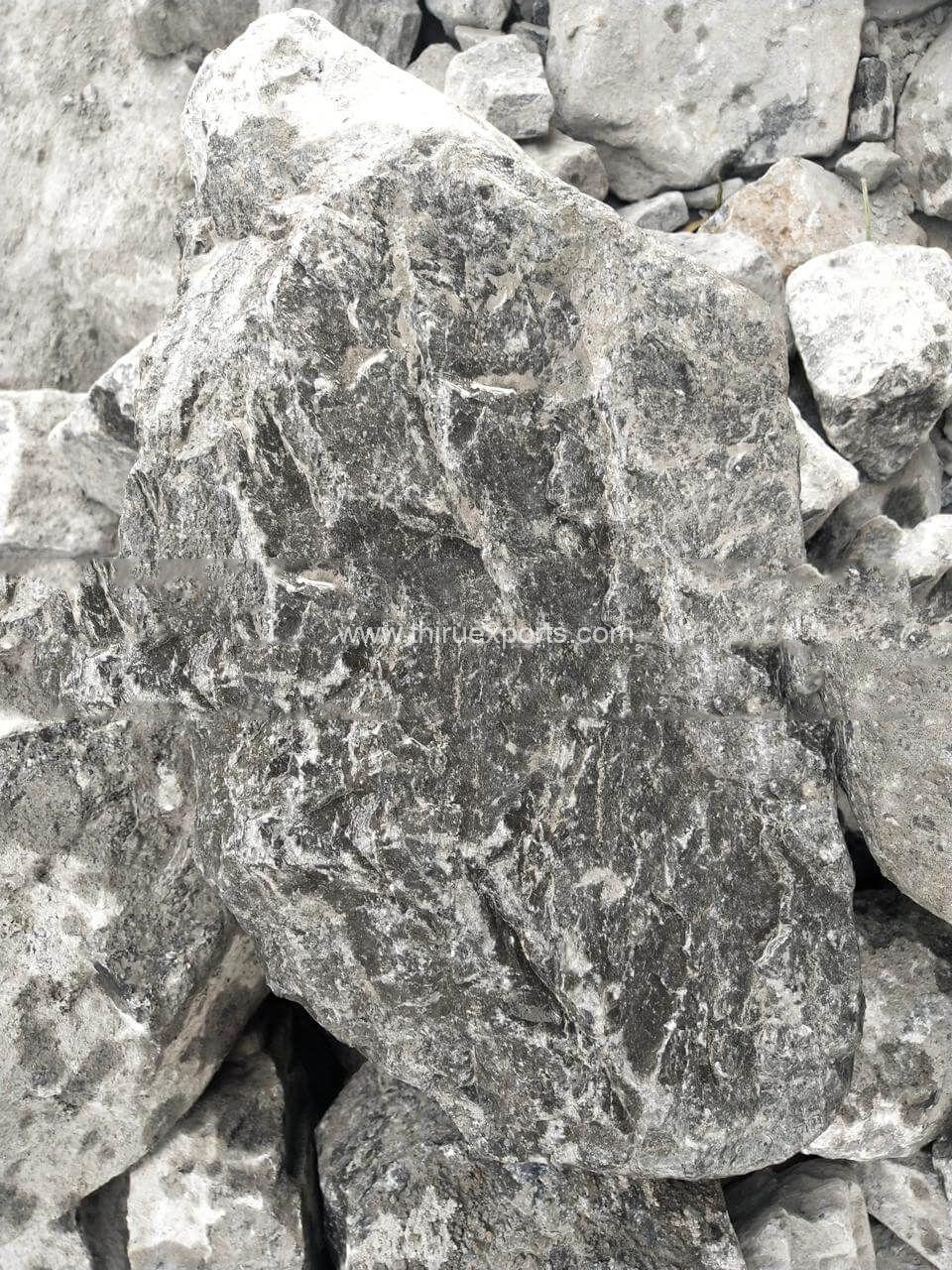

Barite Lumps

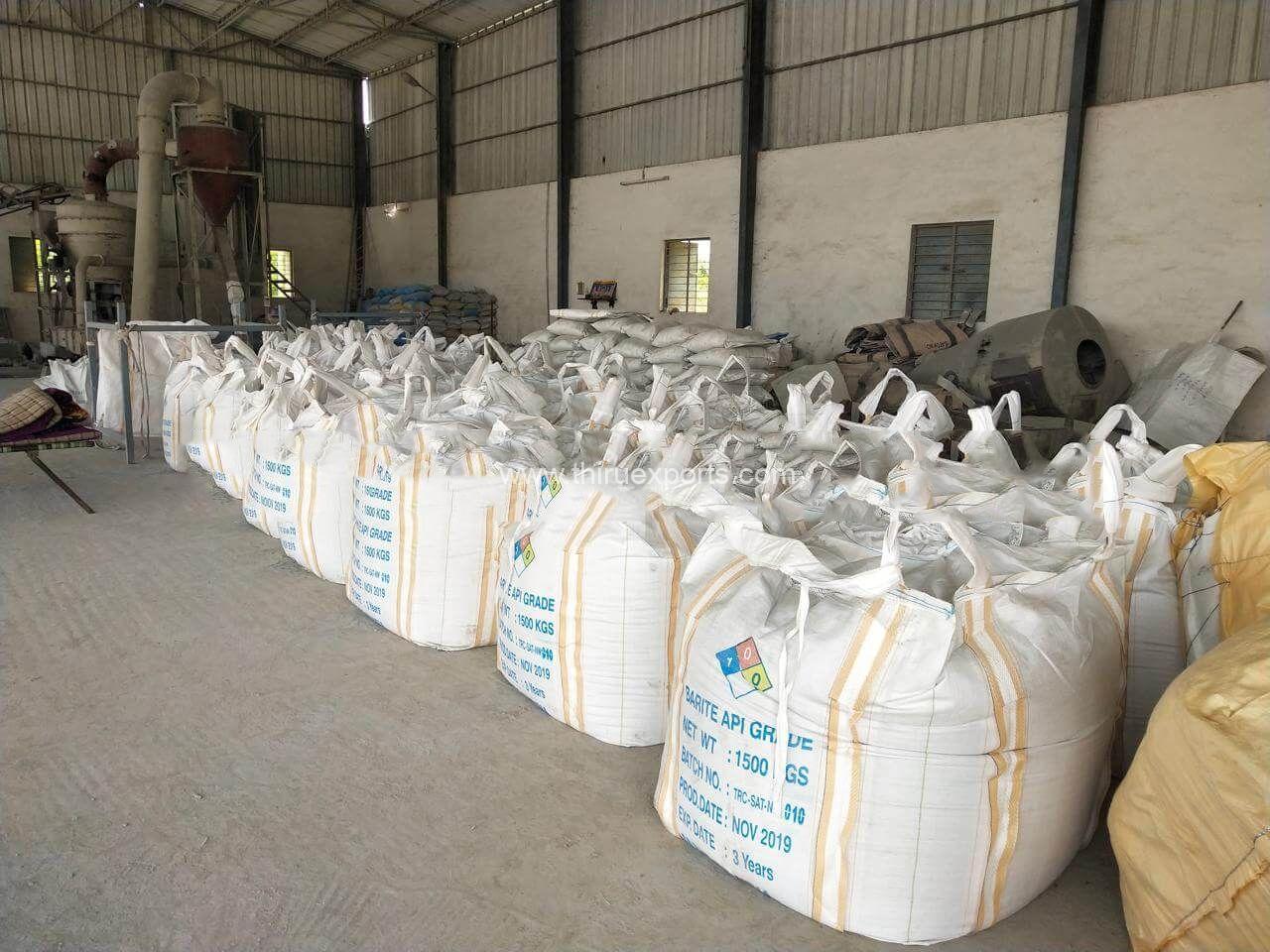

Barite Jumbo Bags Packing

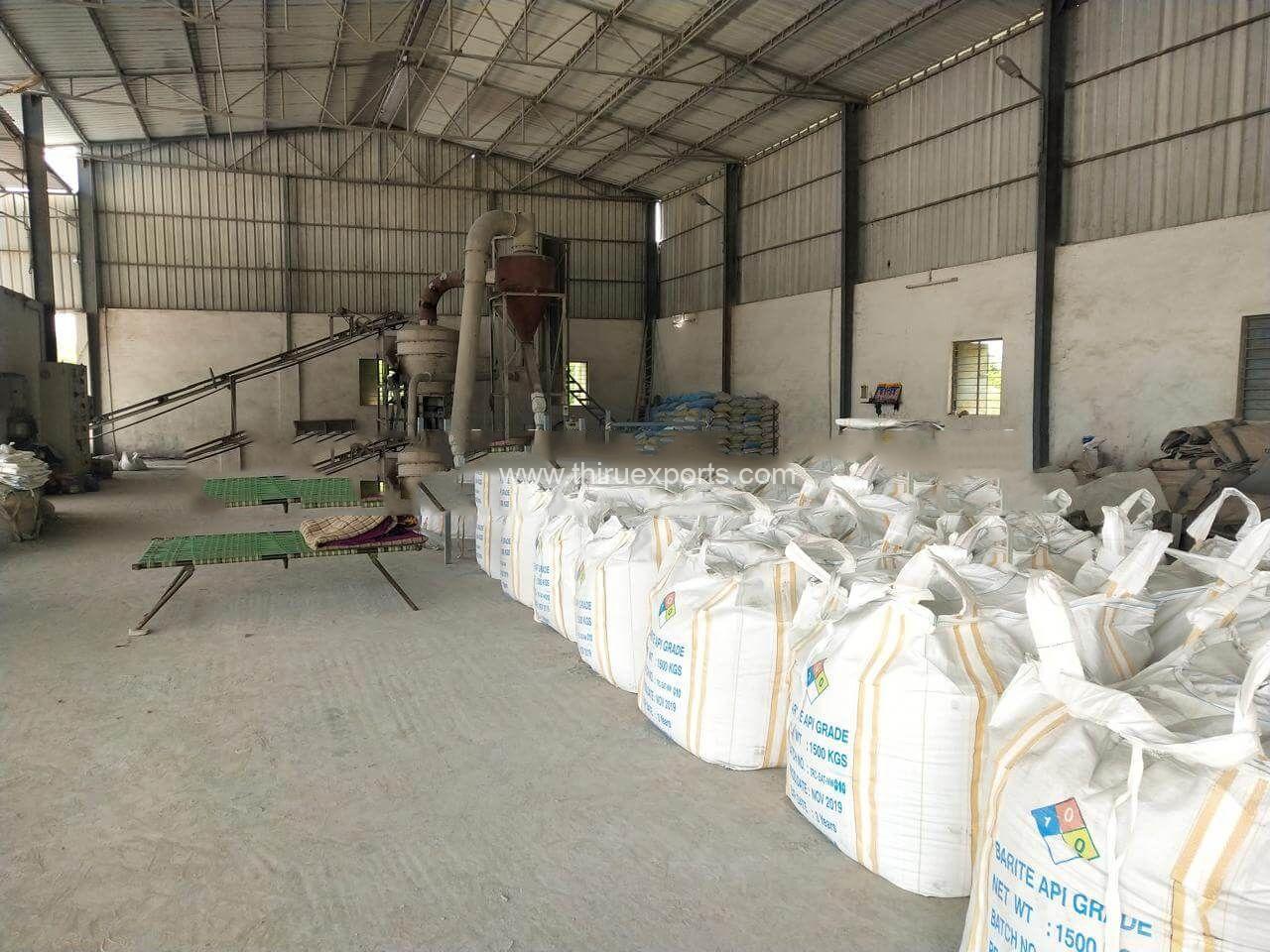

Barite Ready Packing
| Barite Powder Grade 4.10 SG | |
|---|---|
| (API 13A section 20 specifications) | |
| Barite Color | Gray/White |
| Mesh | 200 |
| BaSO4 | 90% Min |
| Specific gravity | 4.10 g/ml Min |
| Soluble Corbonates | 2500 mg/l Max |
| Moisture Content | 1% Max |
| Water Soluble Alkaline Earth Metal | 250ppm Max |
| Mercury | 1.0 ppm Max |
| Cadmium | 3.0 ppm Max |
| Barite powder grade 4.0 SG | |
|---|---|
| Barite Color | Gray/White |
| Mesh | 200 |
| BaSO4 | 75-80% Min |
| Specific gravity | 4.0 g/ml Min |
| Soluble Corbonates | 2500 mg/l Max |
| Moisture Content | 1% Max |
| Water Soluble Alkaline Earth Metal | 250ppm Max |
| Mercury | 1.0 ppm Max |
| Cadmium | 3.0 ppm Max |
| API 13A Specifications Drilling Grade Barite | |
|---|---|
| Barite powder grade 4.20 SG | |
| (API 13A section 7 specifications) | |
| Barite Color | Gray/White |
| Mesh | 200 |
| BaSO4 | 90% Min |
| Specific gravity | 4.20 g/ml Min |
| Soluble Corbonates | 2500 mg/l Max |
| Moisture Content | 1% Max |
| Water Soluble Alkaline Earth Metal | 250ppm Max |
| Mercury | 1.0 ppm Max |
| Cadmium | 3.0 ppm Max |
| Barite General Information | |
|---|---|
| Barite Powder Analyze | |
| Barium Sulfate | 90% Min |
| Barite Stone | S.G 4.20 Min |
| Moisture | 91% Max |
| Mesh | 200 |
| Water Soluble | 0.1% Max |
